Summit Treadmill
with
DLED Console
Elevated design and durable performance deliver engaging running experiences in heavy-use fitness facilities.
- Spacious running surface supports natural, confident strides
- Shock-absorbing deck reduces impact for comfort and control
- High-quality drive system offers smooth, long-lasting performance
Product availability may vary by region. Please contact your local office for more information.
Select a Console
A Sleeker, Smoother LED Experience
The DLED Console pairs bright workout feedback, intuitive controls and simple connectivity in a clean, easy-to-use design.
DLED Console
Made for the Long Run
Spacious Running Surface for Every Stride
A spacious 152 x 55.4 cm / 60" x 22" running surface supports natural strides and gives users room to stay comfortable at any pace.
Responsive Commercial Drive System
The 4.2 hp AC drive system delivers consistent output for smooth speed and incline changes across varied workouts. Responsive transitions help users maintain their pace, with reliable performance built for frequent use in busy facilities.
Commercial Treadmill Durability That Lasts
Heavy-gauge Frame for Lasting Durability
A heavy-gauge welded steel frame provides a stable platform for demanding workouts and dependable performance in busy facilities.
Easy Service Access Reduces Downtime
Easy-access service points simplify routine maintenance, helping technicians work efficiently and return equipment to use sooner.
Protection for Internal Components
A sweat-resistant design helps protect critical internal components in busy commercial fitness environments. Combined with durable engineering, it delivers dependable performance and lasting reliability through years of heavy use.
Treadmill Details Built for Daily Use
Specifications
Product features and specifications subject to change.
Console
Display
10 x 14 white dot-matrix LED profile display, alphanumeric LEDs, dedicated HR zone display
Workouts
Manual, target heart rate, interval training, time goal, distance goal, calorie goal, fitness test, fat burn
Languages
English, German, French, Italian, Spanish, Dutch, Portuguese, Russian, Polish
Heart Rate
Contact, telemetric, Bluetooth
WiFi
Optional: for connection to Vision Asset Management
Bluetooth
Yes: heart rate, FTMS transmits speed and other data to training apps
USB Port
Yes: USB-A for device charging and software updates
Workout Feedback
5 displays allow user to toggle between time and distance, resistance level and calories, speed and RPM, watts and METS, heart rate and incline
NFC
Yes: one-tap connection to Vision Fitness app
QR Code
Yes: connects to console demonstration video and Vision Fitness app download link
Power consumption when turned off
≤ 0.3 W
Power consumption in standby mode
≤ 0.5 W
Frame
Frame Type
Heavy-gauge welded steel
Running Area
152 x 55.4 cm / 60” x 22”

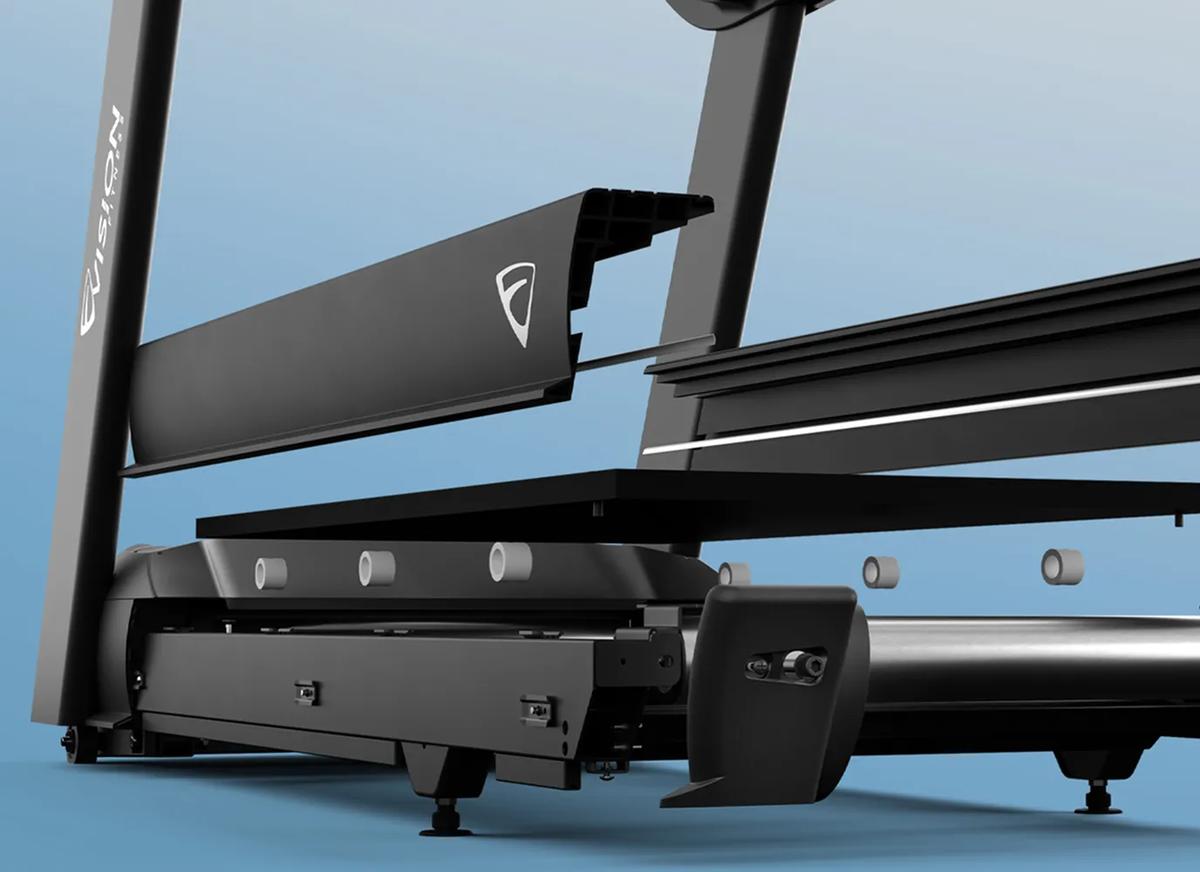

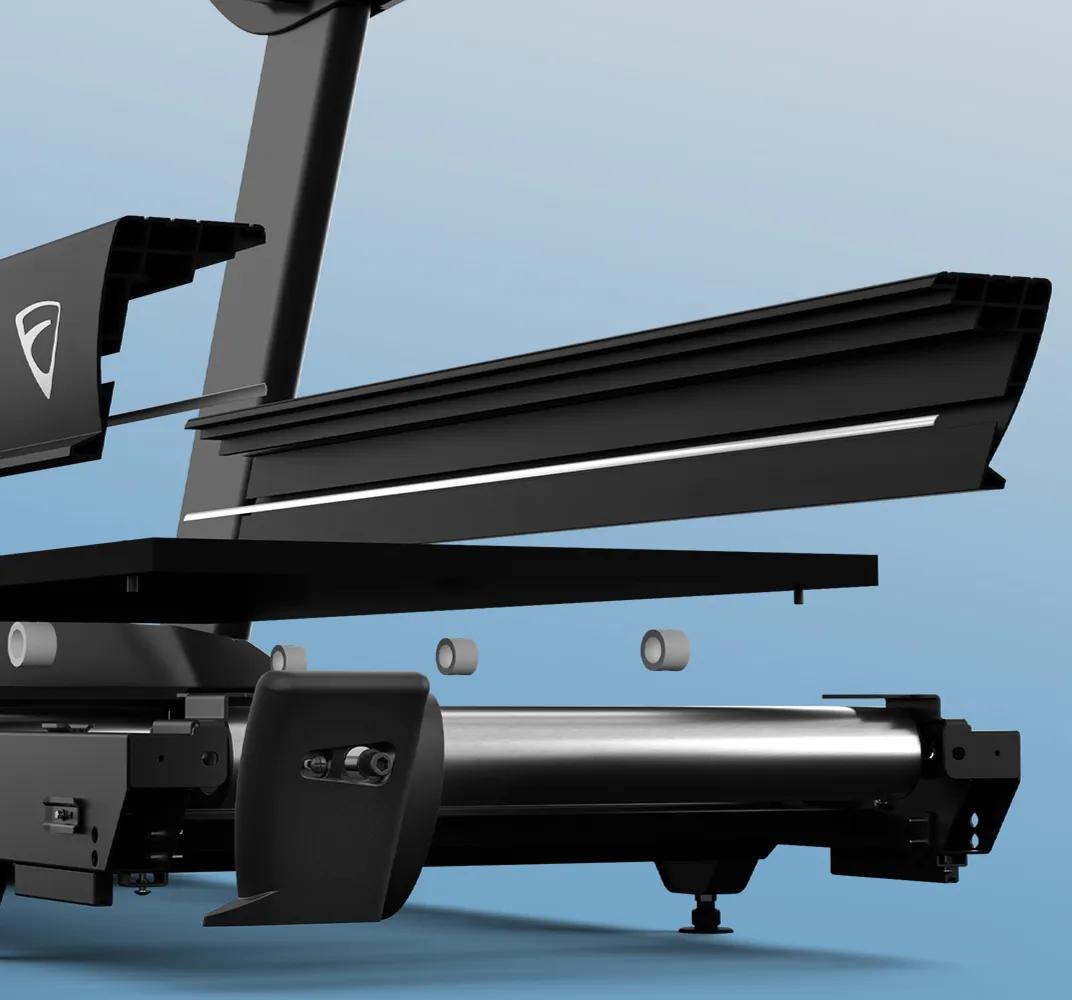

Cushioning System
UltraZone cushioning system

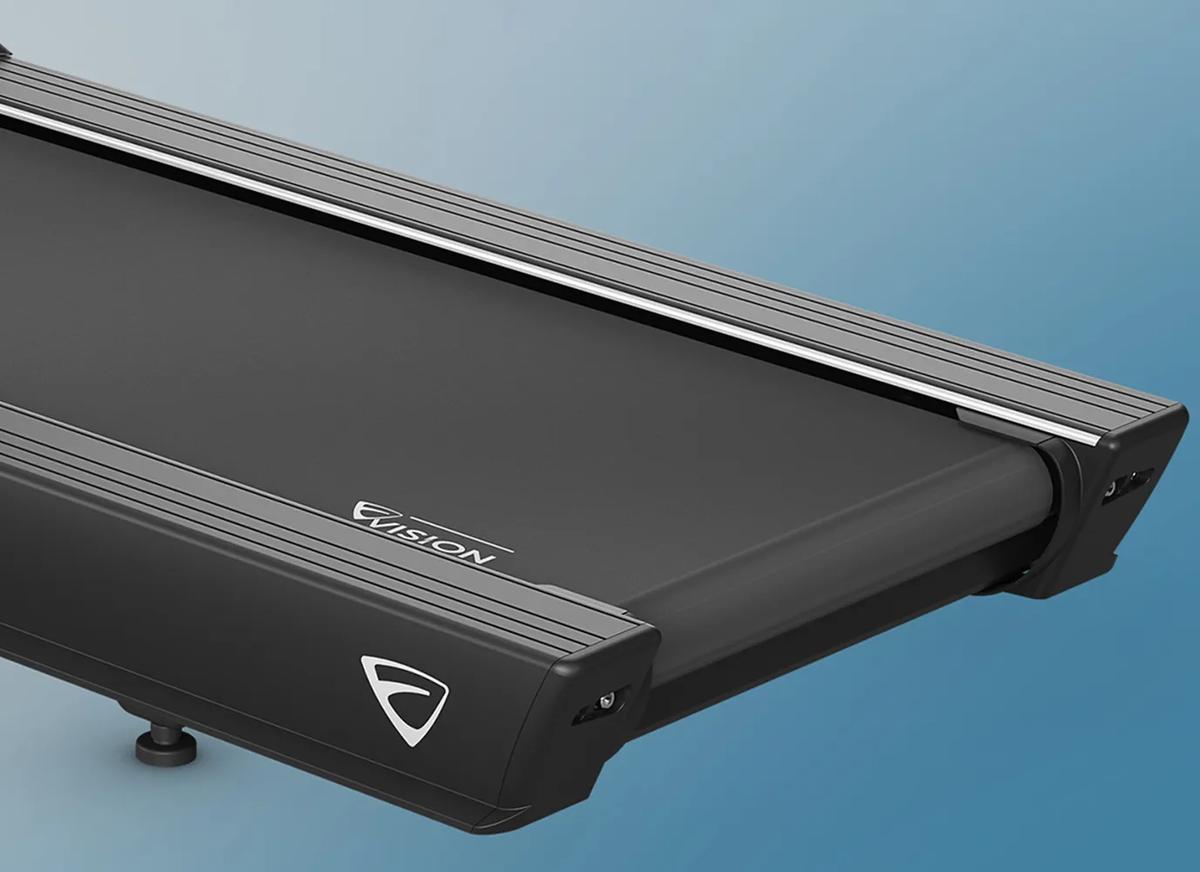

Running Belt
2-ply waxed belt
Deck Thickness
2.54 cm / 1” reversible
Drive System
4.2 hp AC dynamic response drive system
Speed Range
0.8–22 km/h / 0.5–13.8 mph (220 V) or 0.8–19.3 km/h / 0.5–12 mph (100–120 V)
Incline Range
0–15%
Extras
Water bottle holder, reading rack
Assembled Dimensions (L x W x H)
215 x 91 x 154 cm / 85” x 36” x 61” with DLED, 215 x 91 x 162 cm / 85” x 36” x 64” with ENT
Assembled Weight
173 kg / 382 lbs. with DLED, 179 kg / 395 lbs. with ENT
Max User Weight
182 kg / 400 lbs.
Power Requirements
220 V / 50–60 Hz or 100–120 V (may vary by region)
Power Supply
NEMA 6–20 (120 V) or 220 V (may vary by region)
