Summit Suspension Elliptical
with
ENT16 Console
Smooth, low-impact motion and a sturdy, commercial-grade frame deliver reliable workouts in demanding fitness environments.

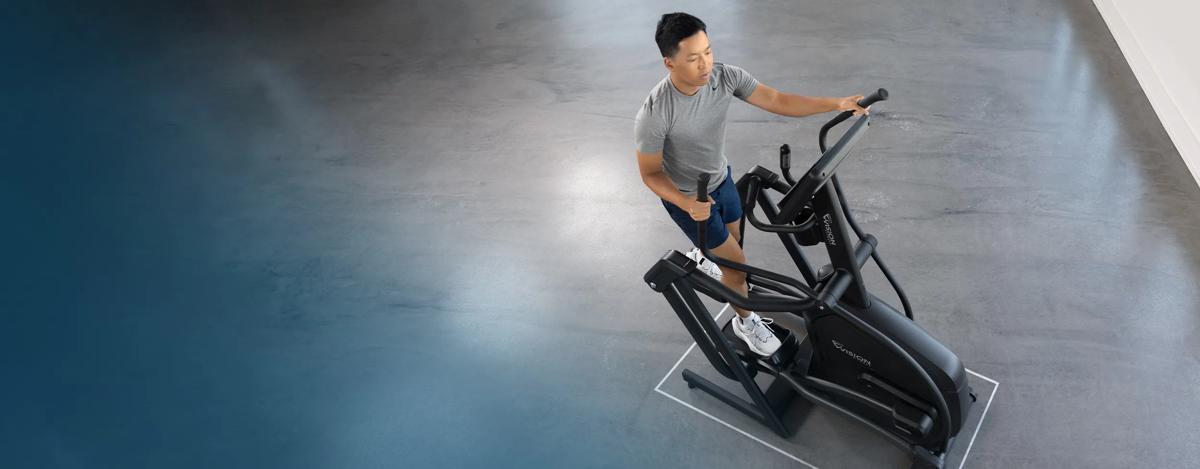

- Footprint 10% smaller than competitors delivers maximum performance in minimal space
- Natural stride design supports smooth, low-impact exercise for users of all kinds
- Heavy-duty commercial frame delivers stable, confident workouts in demanding environments
Product availability may vary by region. Please contact your local office for more information.
Select a Console
Immersive Entertainment at Their Fingertips
The ENT Console combines immersive touchscreen workouts, entertainment and simple connectivity to keep exercisers engaged and motivated through every workout.
ENT16 Console
Sleek, Modern Design
A slim console case brings the sleek aesthetic of a modern exercise experience to your facility.
Low-Impact Reliability in Motion

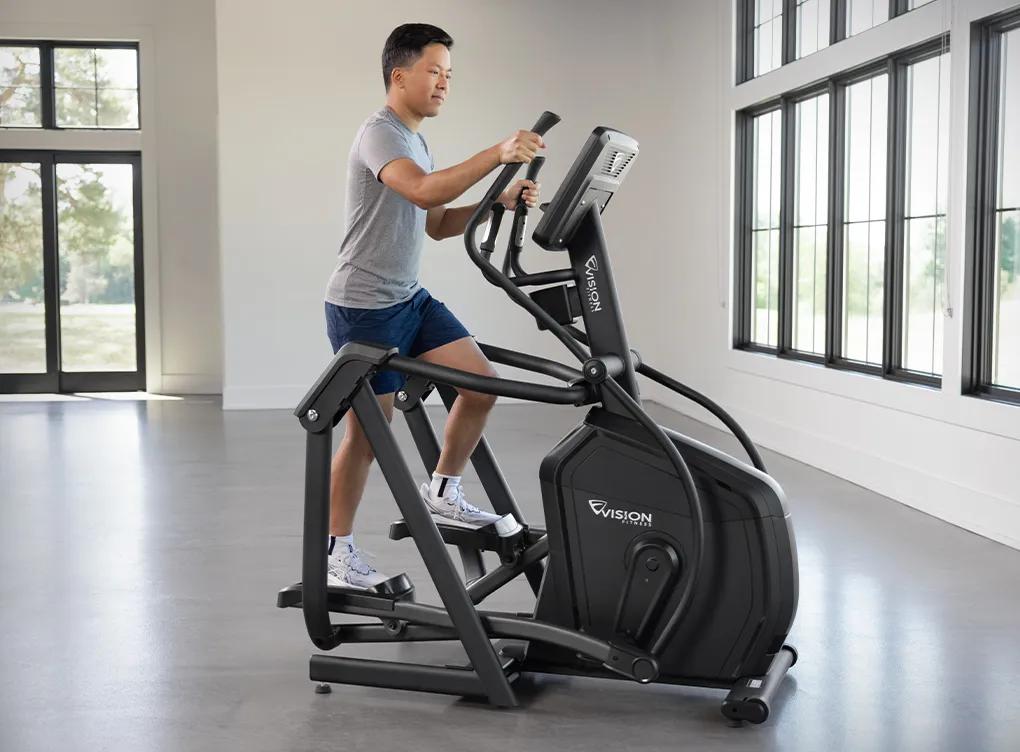

Natural, Low-Impact Elliptical Movement
Natural stride geometry supports smooth, low-impact motion that reduces joint stress and keeps workouts comfortable across fitness levels.

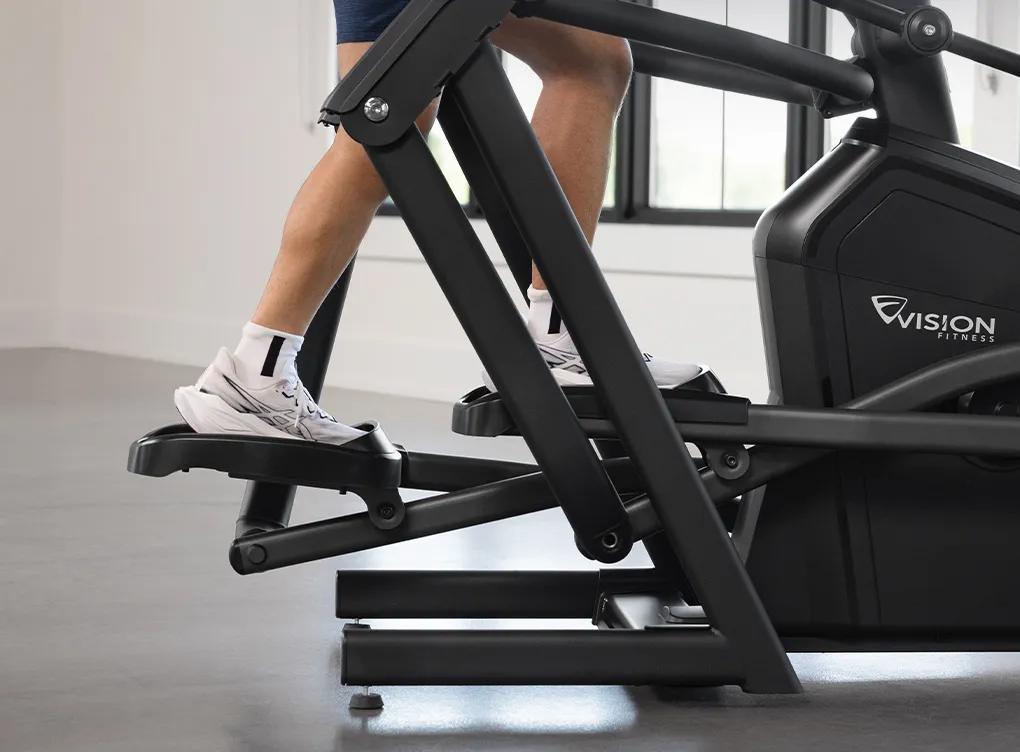

Suspension Design for Smooth Performance
A wheel- and track-free suspension design supports smooth motion with less noise and fewer maintenance needs.
Reliable Performance for Daily Use

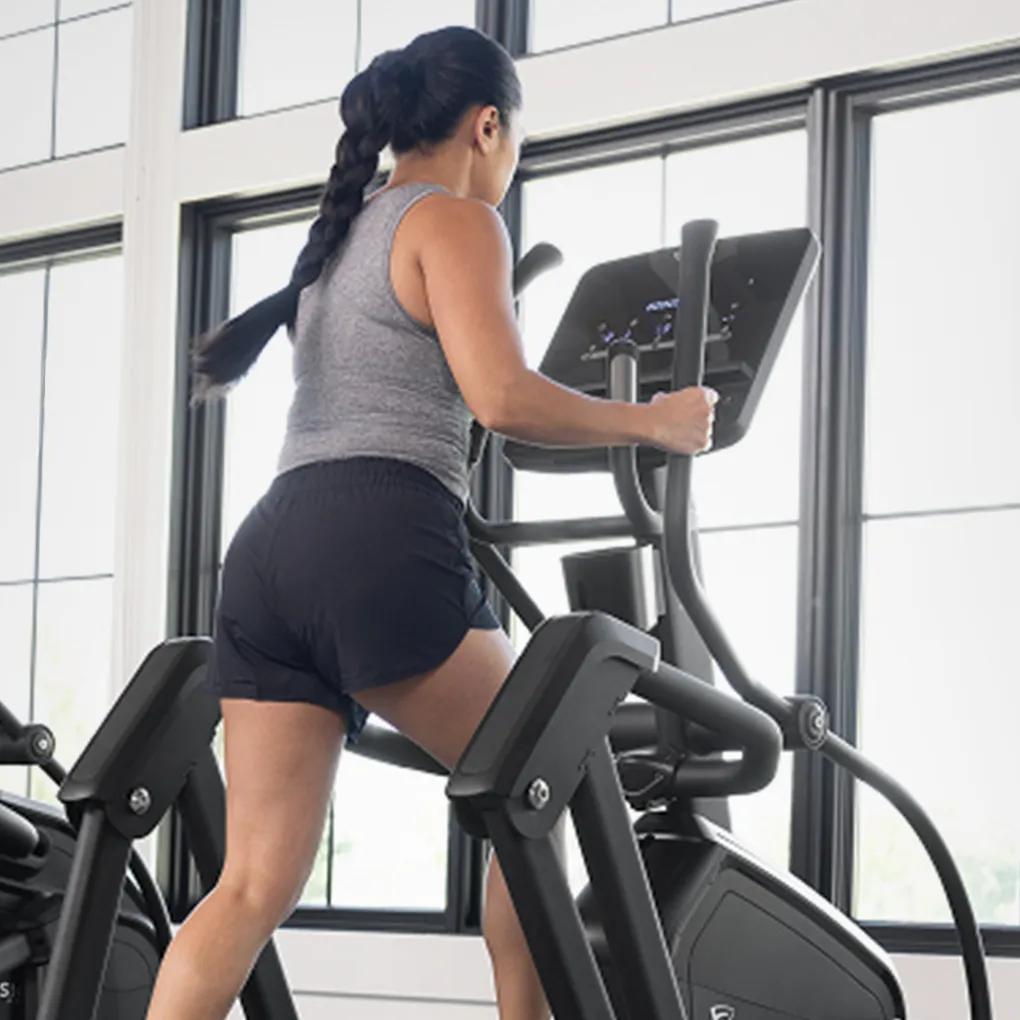

Commercial-Grade Confidence
A heavy-duty commercial-grade welded steel frame and robust engineering maximizes stability during demanding daily use, delivering lasting durability and dependable performance.

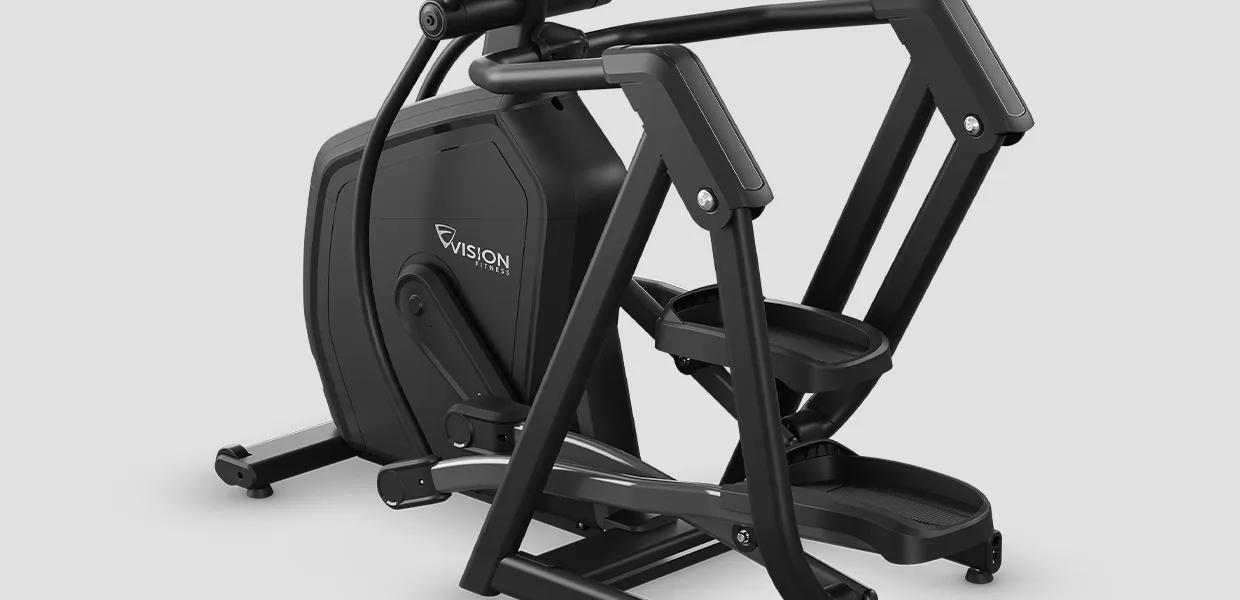

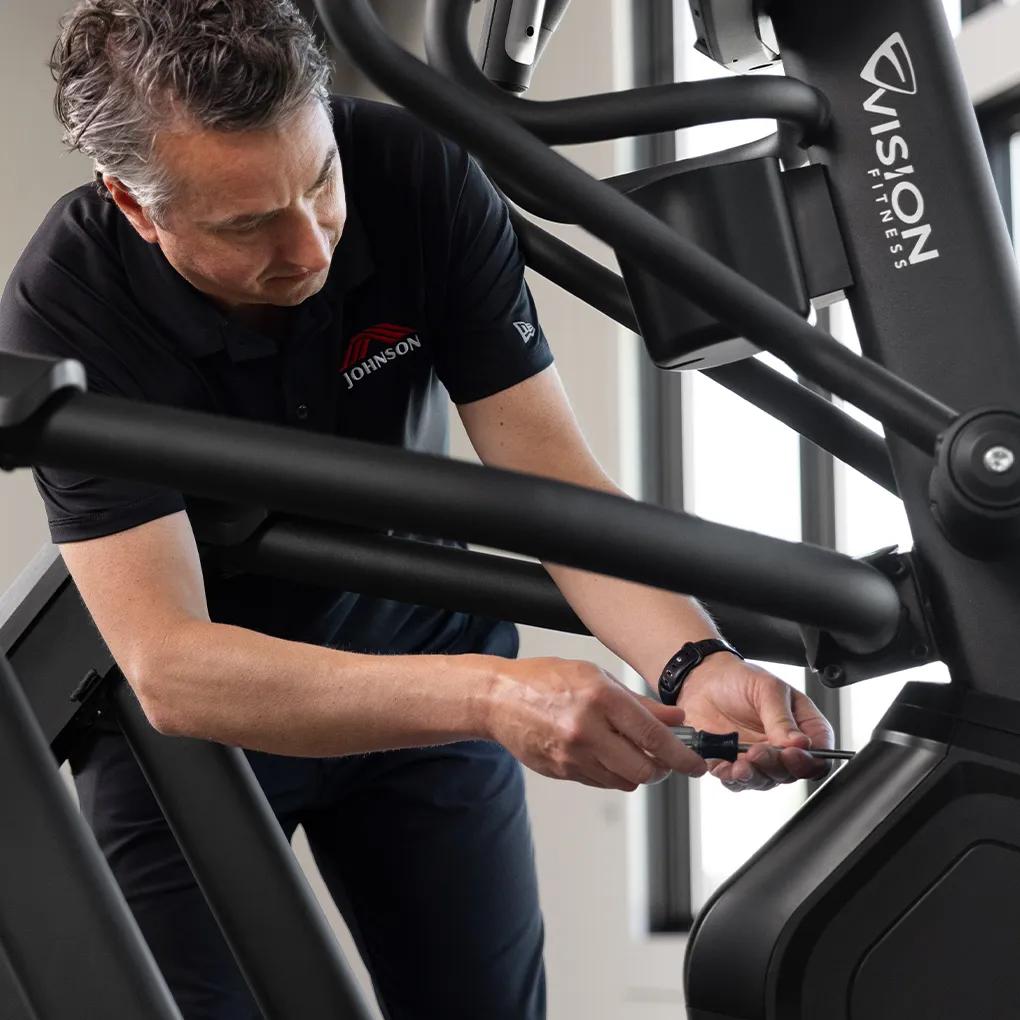

Simplified Service Access
Easy-access service points simplify routine maintenance, helping technicians work efficiently and return your elliptical to use sooner.

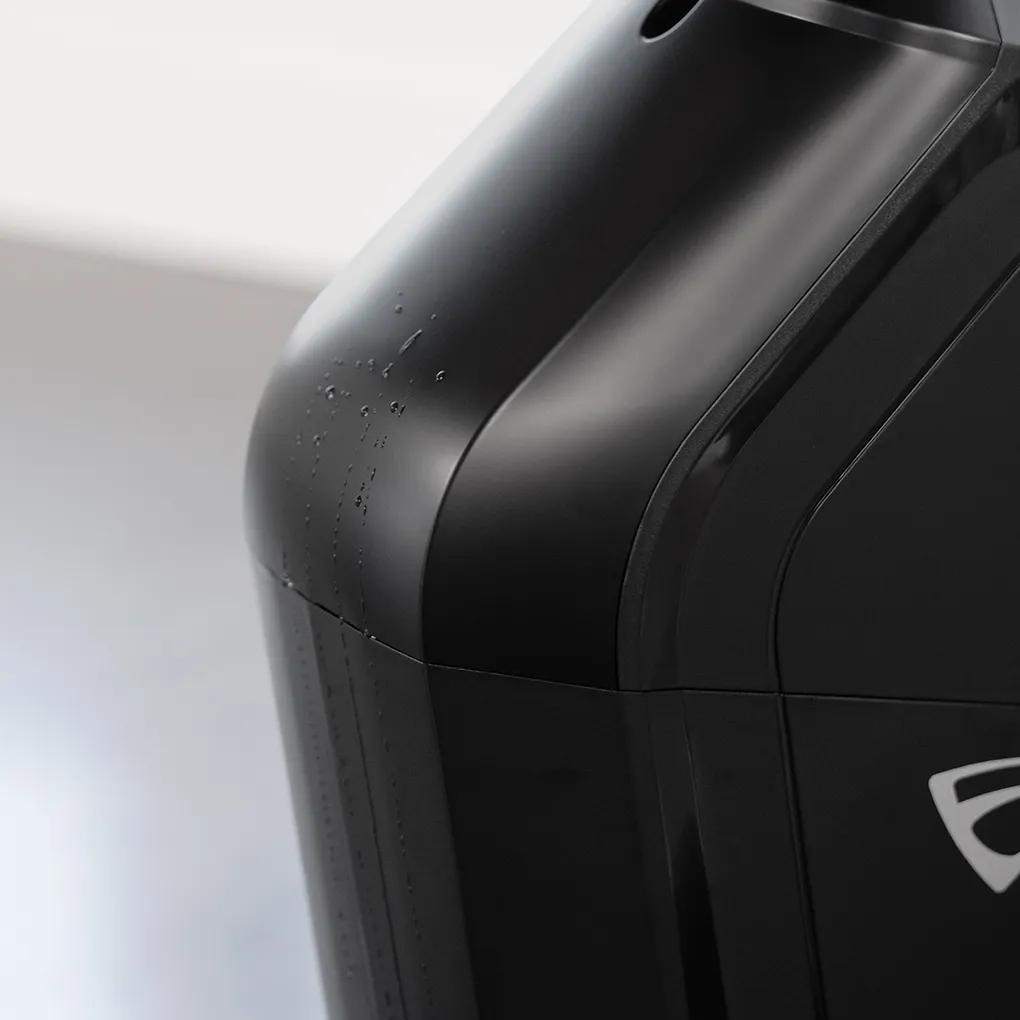

Built to Protect Key Components
Sweat-resistant construction helps shield internal components from moisture, supporting reliable operation in high-traffic fitness facilities.
See the Suspension Elliptical Up Close
Specifications
Product features and specifications subject to change.
Console
Display
41 cm / 16” class capacitive touchscreen LCD
Workouts
Manual, interval training, fat burn, HR weight loss, HR interval, constant watts, interval watts, hill watts, time goal, distance goal, calorie goal, random
Note: some of these workouts may not be available on this frame.
Heart Rate
Contact, telemetric, Bluetooth
Languages
English, German, French, Italian, Spanish, Dutch, Portuguese, Chinese-S, Chinese-T, Japanese, Korean, Swedish, Finnish, Russian, Arabic, Turkish, Polish, Welsh, Basque, Vietnamese, Somali, Danish, Thai, Malay, Catalan
Analog TV
Optional: NTSC, PAL, SECAM
Digital TV
Optional: ATSC 1.0, QAM-B, ISDB-T, ISDB-Tb, DVB-C/S/S2/T/T2
Pro:Idiom Compatibility
Optional (via coax)
WiFi
Yes
USB Port
Yes: USB-A for device charging, device media, software updates
HDMI IN Port
Yes: screen casting from smart devices that support HDMI output
Workout Feedback
Distance, speed, floors, steps, heart rate, watts, METs, SPM, RPM, pace, calories, time, resistance, level, incline
Note: some of this feedback may not be available on this frame.
Bluetooth
Yes: heart rate, headphones, FTMS transmits speed and other data to training apps
CSAFE
No
NFC
Yes: one-tap connection to Vision Fitness app
Tablet Holder
Yes
QR Code
Yes: connects to console demonstration video and Vision Fitness app download link
Power consumption when turned off
≤ 0.3 W
Power consumption in standby mode
≤ 0.5 W
Frame
Frame Type
Suspension Elliptical Trainer
Stride Length
51.3 cm / 20”
Step-on Height
24 cm / 9.5”
Power Incline
No

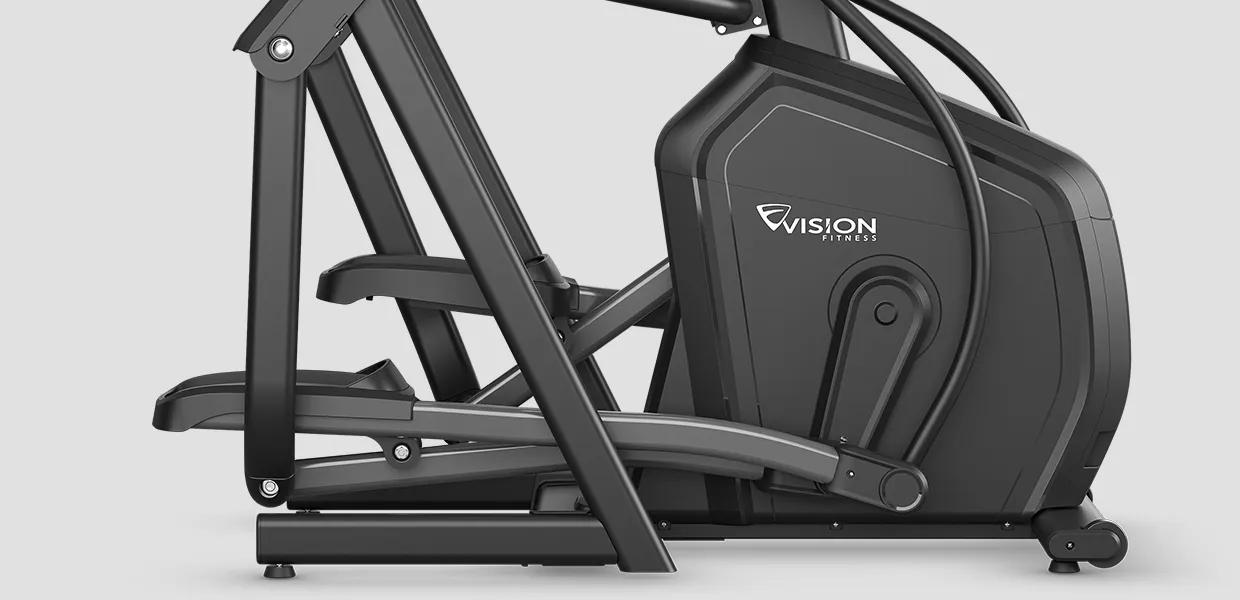

Resistance System
Two-stage, self-powered generator
Resistance Range
1–30

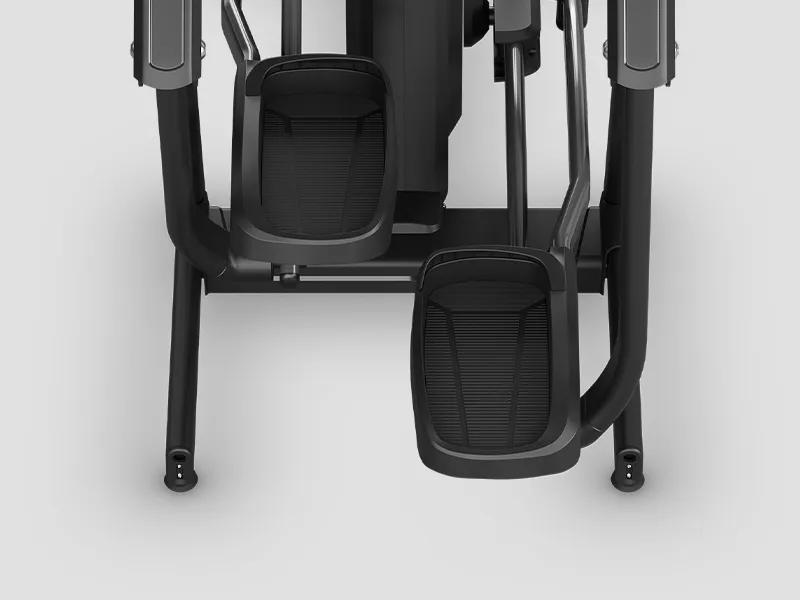

Pedal Type
Oversized with rubber inserts and front guard
Pedal Spacing
5.9 cm / 2.3”

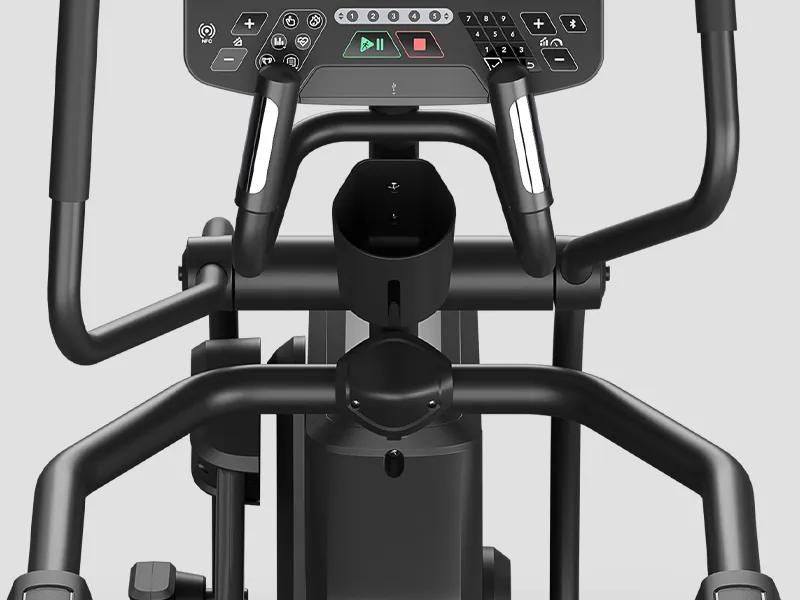

Handlebar Design
Dual action and stationary with heart rate grips
Extras
Water bottle holder, reading rack
Assembled Dimensions (L x W x H)
167 x 77 x 168.5 cm / 65.7” x 30.3” x 66.3”
Assembled Weight
150 kg / 330 lbs.
Max User Weight
182 kg / 400 lbs.
Power Requirements
Self-powered or 100–240 V — 50/60 Hz AC (may vary by region)
