S60 | S600E Suspension Elliptical
with
Entertainment Console
The low-maintenance suspension design of the Suspension Elliptical provides a whisper-quiet, natural exercise experience that protects the user’s joints while engaging the whole body. Refined ergonomic details and an easily accessible design make it easy for anyone to get started and have a comfortable workout.
Product availability may vary by region. Please contact your local office for more information.
Select a Console
Now There's More to See
You can make your fitness center a highlight of your offering with exercise that entertains.
Entertainment Console
Exercise that Entertains

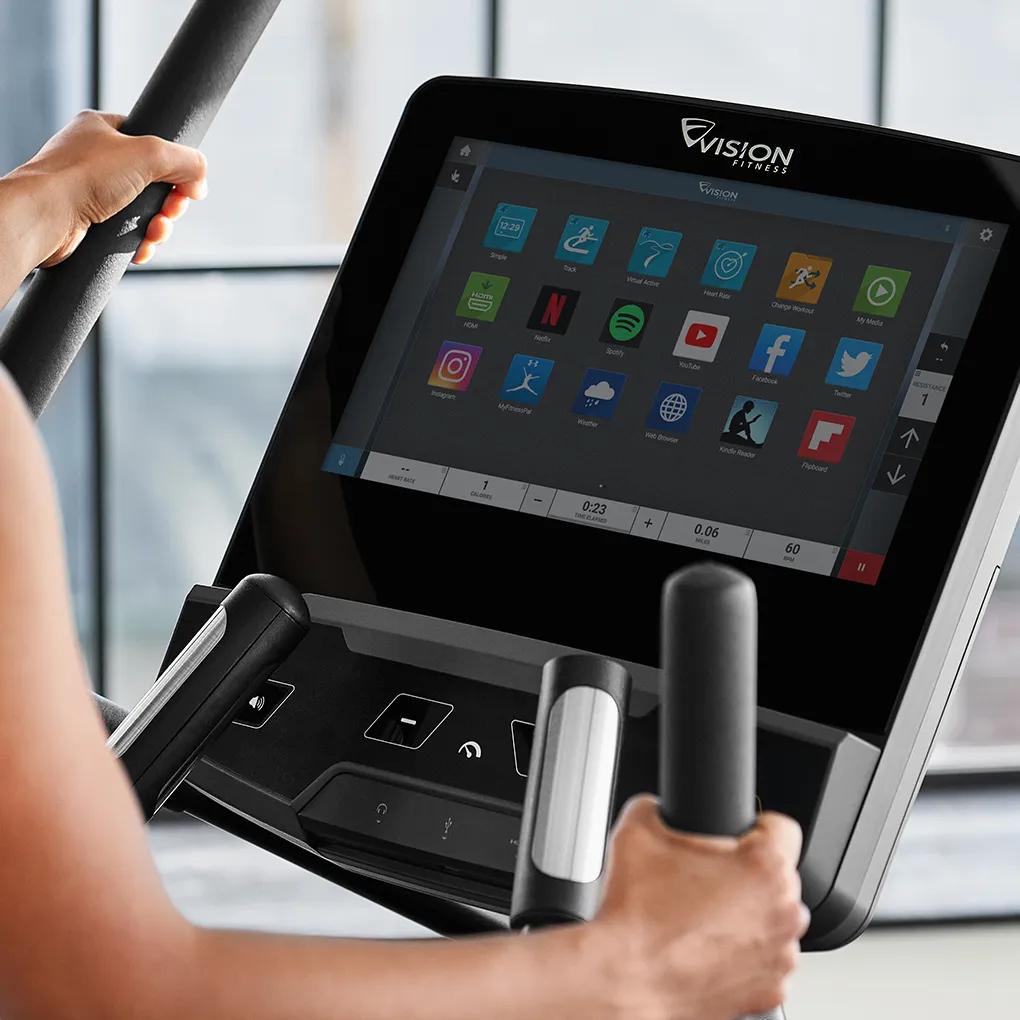

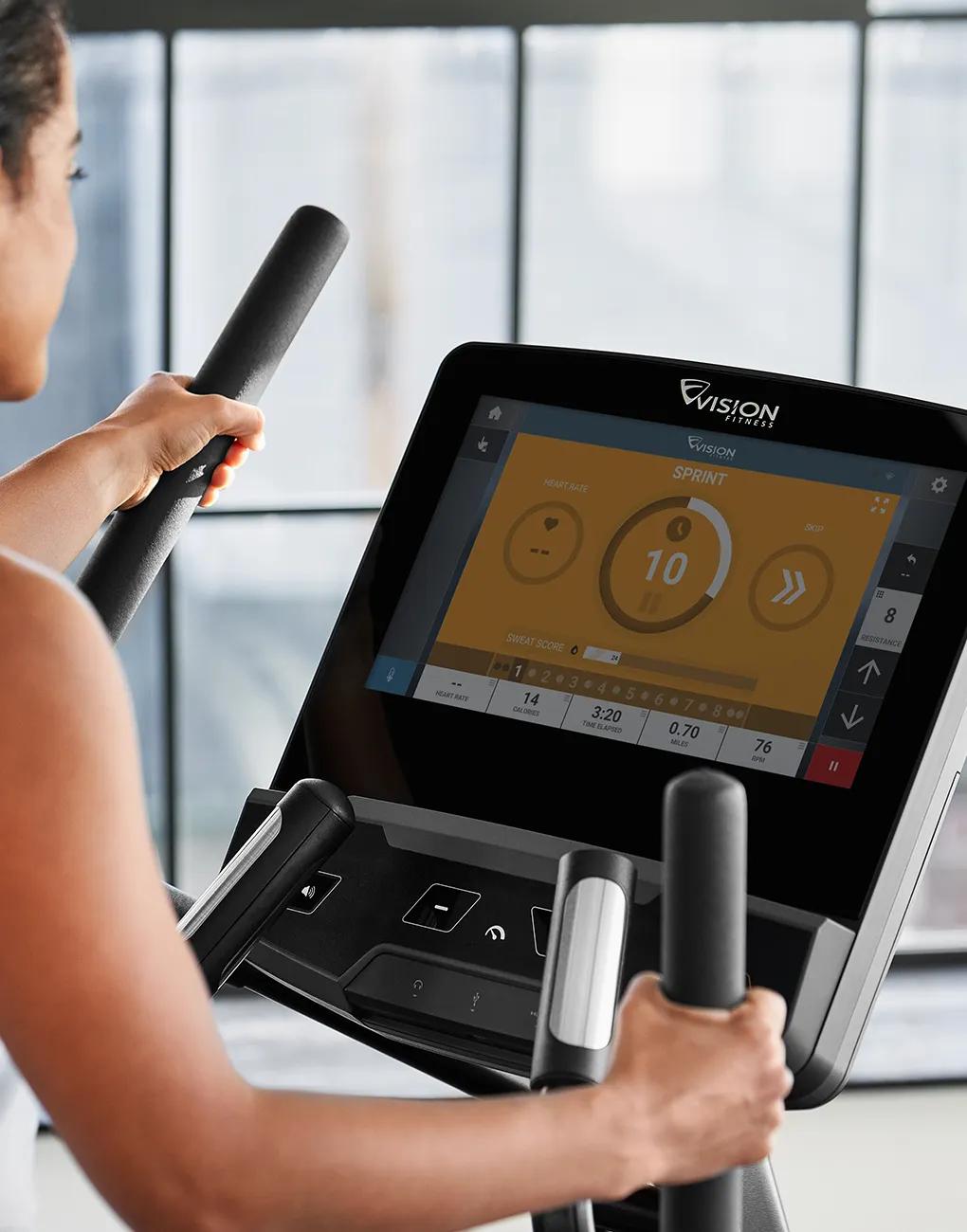

Our 16" class touchscreen Entertainment Console will bring people in and keep them coming back with all of their favorite entertainment apps, plus exclusive HD destination footage, HIIT programs and more.
Popular Entertainment Apps
We’ve integrated the most popular streaming entertainment apps in a familiar tablet-style interface, so it’s easy for anyone to log in to their personal accounts and enjoy their favorite music, movies, shows and books while their workout flies by.
Apps vary by market and subject to change. App subscriptions not included.
Ergonomic Comfort

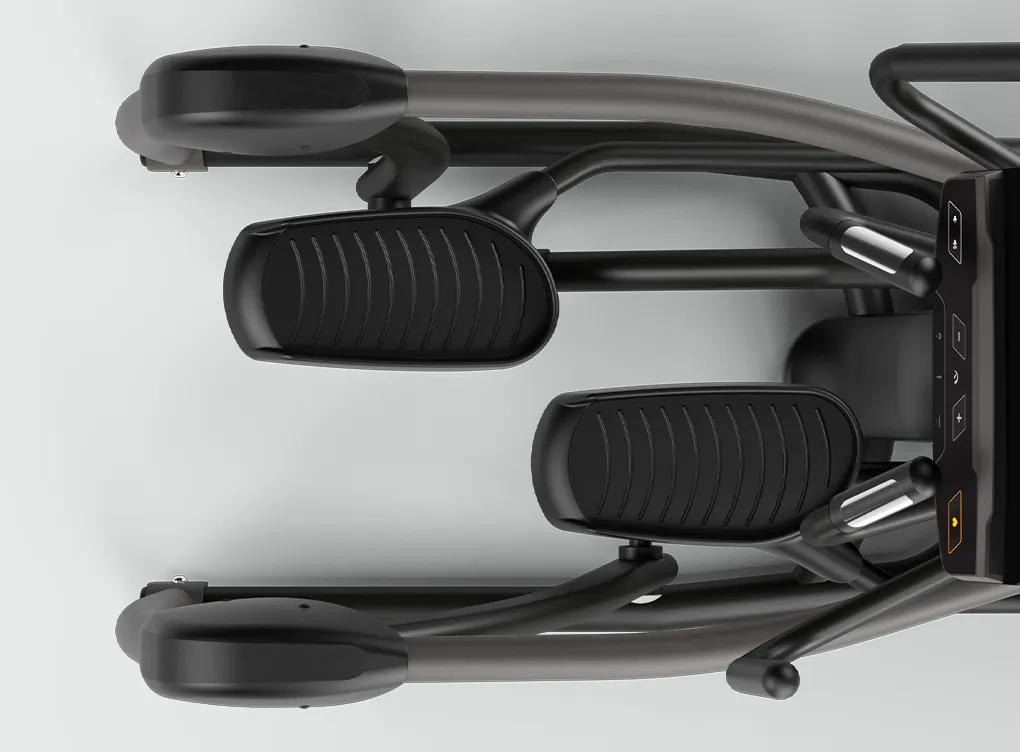

Large, cushioned pedals reduce stress on joints, while narrow pedal spacing promotes good posture.
Easy Access

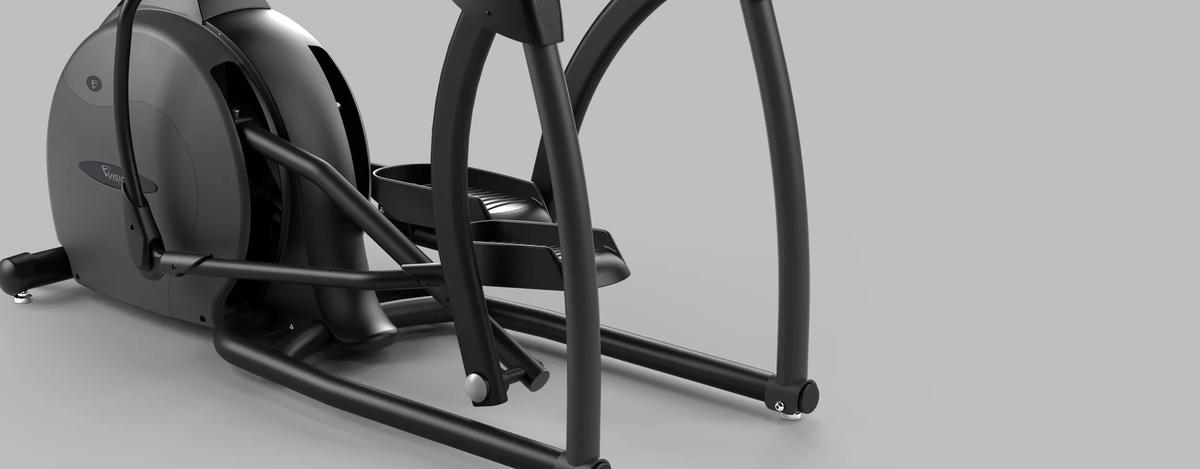

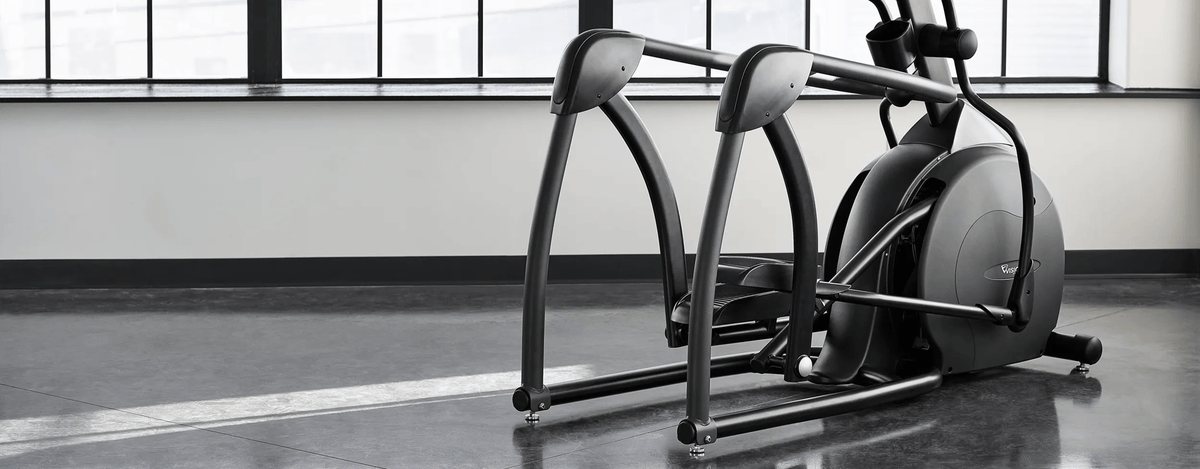

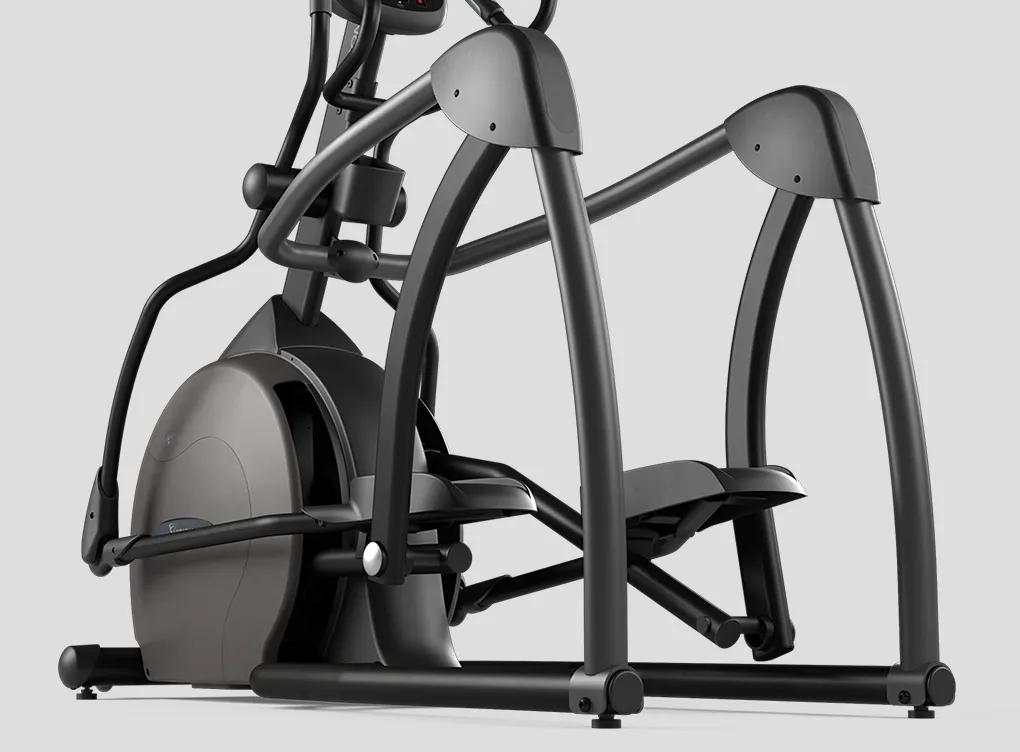

An open design with stability handholds and a low step-on height make it easy for anyone to get started and have a solid, secure exercise experience.
Dual Action Handlebars
Stationary handlebars with heart rate grips provide a stable, lower-body workout while dual action handlebars increase the intensity for a full-body workout.
Specifications
Product features and specifications subject to change.
Console
Display
41 cm / 16” class capacitive touchscreen LCD
Programs
Go, manual, Sprint 8, Virtual Active, target heart rate, interval training, fat burn, rolling hills, constant watts, time goal, distance goal, calorie goal, fitness test, custom
Heart Rate
Contact, telemetric, Bluetooth
Languages
English, German, French, Italian, Spanish, Dutch, Portuguese, Chinese-S, Chinese-T, Japanese, Korean, Swedish, Finnish, Russian, Arabic, Turkish, Polish, Welsh, Basque, Vietnamese, Somali, Danish, Thai, Malay, Catalan
Analog TV
Optional: NTSC, PAL, SECAM
Digital TV
Optional: ATSC 1.0, QAM-B, ISDB-T, ISDB-Tb, DVB-C/S/S2/T/T2
Pro:Idiom Compatibility
Optional (via Coax)
WiFi
Yes
USB Port
Yes: device charging, device media, software updates
HDMI In Port
Yes: screen cast of smart devices that support HDMI out to console
Bluetooth
Yes: heart rate, headphones, FTMS transmits speed and other data to training apps
CSAFE
Yes
Power consumption when turned off
≤ 0.3 W
Power consumption in standby mode
≤ 0.5 W
Frame
Frame Type
Suspension Elliptical Trainer
Stride Length
53.4 cm / 21”
Step-on Height
23 cm / 9”
Power Incline
No
Resistance System
2-stage generator
Resistance Range
1–25
Pedal Type
Oversized with rubber inserts
Pedal Spacing
5.1 cm / 2”
Handlebar Design
Dual action and stationary with heart rate grips
Extras
Water bottle holder, reading rack
Assembled Dimensions
186 x 75 x 164 cm / 74” x 29.5” x 64.5”
Assembled Weight
146.5 kg / 323 lbs.
Max User Weight
182 kg / 400 lbs.
Power Requirements
By power adapter, output: 12 V DC, 5 A (may vary by region)
