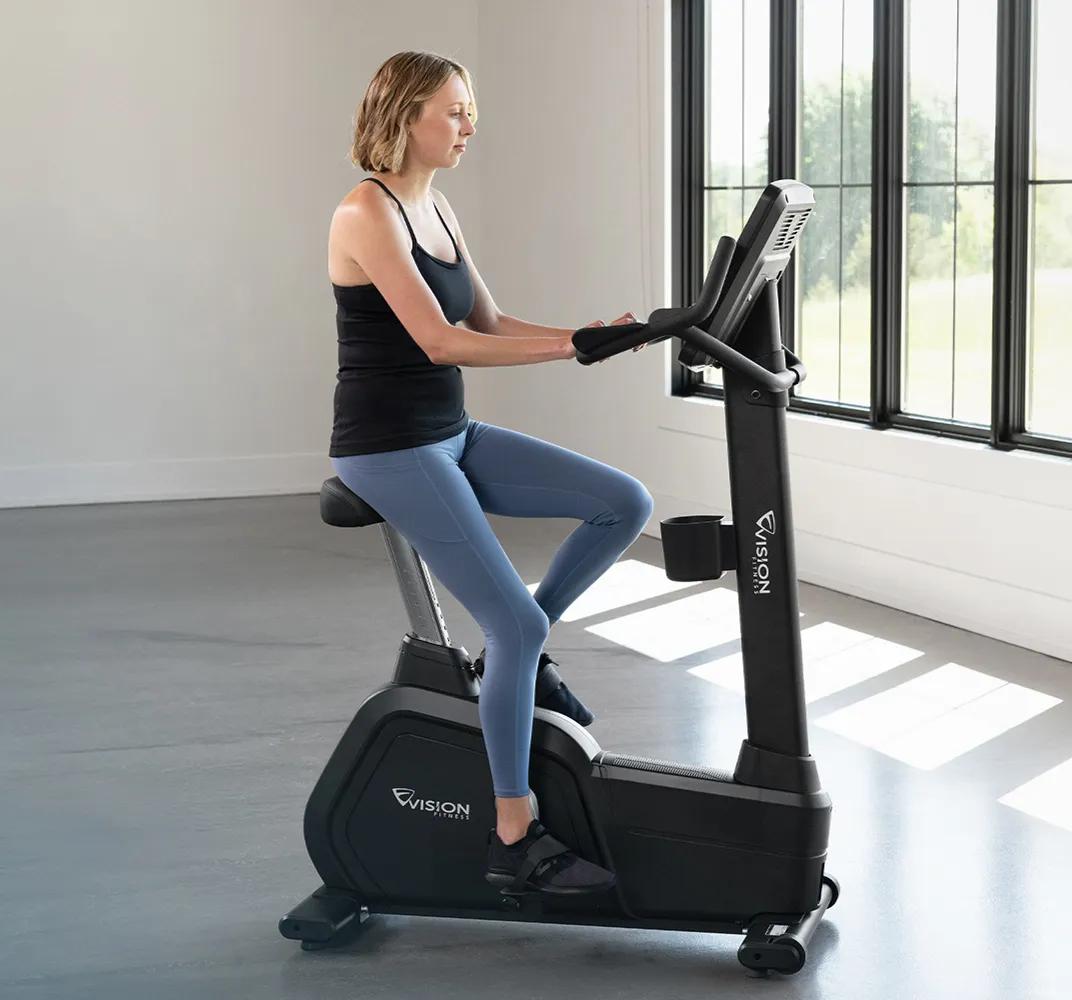

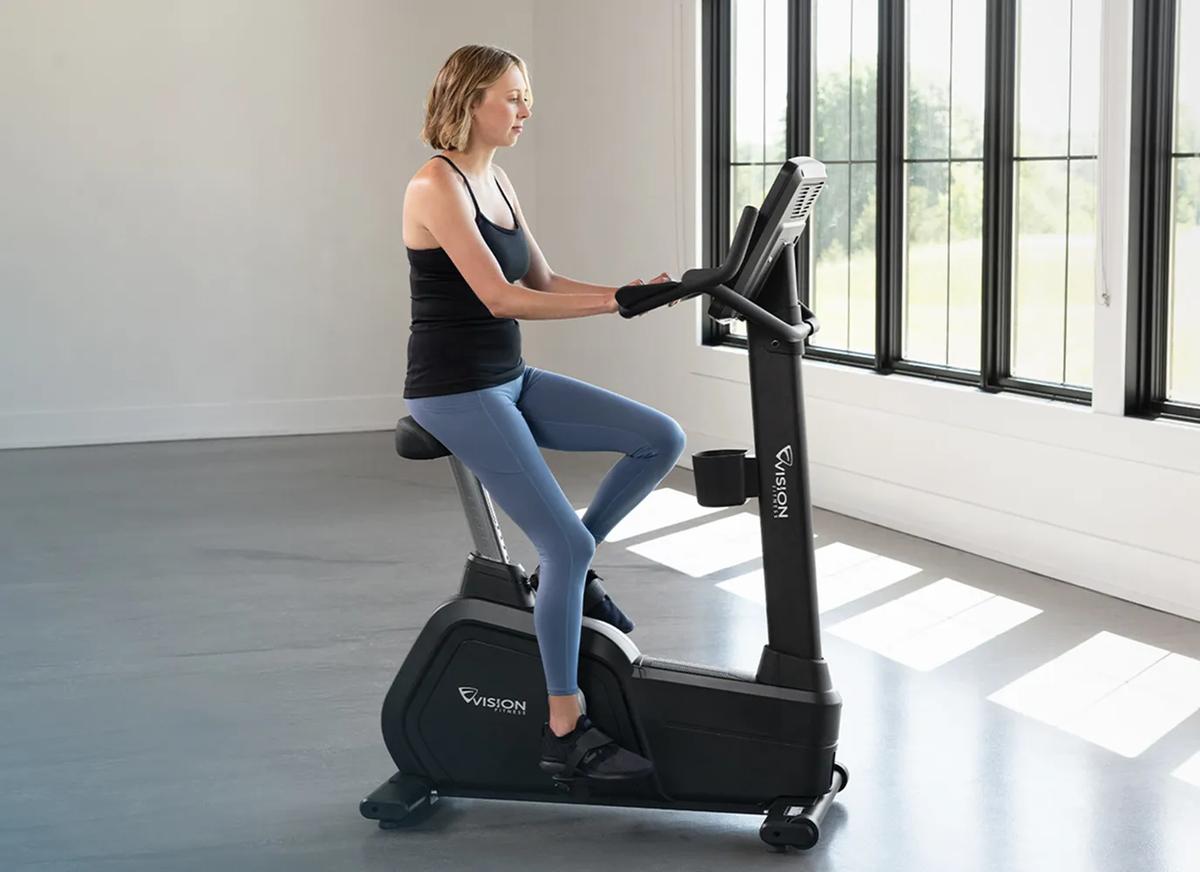

Summit Upright Bike
with
DLED Console
Elevated design and reliable performance deliver a comfortable, familiar ride in busy fitness facilities.
- Footprint 10% smaller than competitors delivers maximum performance in minimal space
- Ergonomic upright position supports comfortable, familiar cycling for diverse users
- Seat adjusts quickly and easily to fit riders of all sizes comfortably
Product availability may vary by region. Please contact your local office for more information.
Select a Console
A Sleeker, Smoother LED Experience
The DLED Console pairs bright workout feedback, intuitive controls and simple connectivity in a clean, easy-to-use design.
DLED Console
Sleek Modern Design
A slim console case brings the sleek aesthetic of a modern exercise experience to your facility.
An Elevated Way to Ride
Compact Footprint for Small Spaces
A footprint 10% smaller than competitive designs helps you fit more cardio equipment into valuable fitness facility space.
Comfortable Fit for More Riders
An ergonomic riding position and quick seat adjustments support proper alignment and a comfortable fit across a wide range of users.
Built for Stability and Reliability
Multiple Grips for Riding Comfort
Multi-position handlebars give riders comfortable hand placement as effort and riding position change throughout an upright cycling workout.
Protected for Long-Term Performance
Sweat-resistant construction helps protect internal components, supporting dependable operation and fewer interruptions in high-use fitness environments.
Service Access That Saves Time
Easy-access service points simplify routine maintenance, helping technicians complete service efficiently and return equipment to use sooner.
A Closer Look at the Upright Exercise Bike
Specifications
Product features and specifications subject to change.
Console
Display
14 x 10 dot-matrix workout profile LEDs and 22 numeric LEDs
Workouts
Go, manual, fat burn, intervals, constant watts†, goal, target heart rate, fitness tests
†Some of these programs may not be available on this frame.
Languages
English, German, French, Italian, Spanish, Dutch, Portuguese, Russian, Polish
WiFi
Optional: for connection to Vision Asset Management
Bluetooth
Yes: connection to Vision Fitness app, heart rate device or FTMS-enabled fitness app
USB Port
Yes: USB-A for device charging and software updates
Workout Feedback
5 displays allow user to toggle between time and distance, resistance level and calories, speed and RPM, watts and METS, heart rate and incline
NFC
Yes: one-tap connection to Vision Fitness app
Tablet Holder
Yes
QR Code
Yes: connects to console demonstration video and Vision Fitness app download link
Power consumption when turned off
≤ 0.3 W
Power consumption in standby mode
≤ 0.5 W
Frame
Frame Type
Heavy-gauge welded steel
Pedal Type
Self-balancing with adjustable straps
Seat Type
Sewn vinyl over foam
Seat Adjustment
11 positions
Resistance System
Single-stage, self-powered generator
Resistance Range
1–30
Handlebar Design
Multi-position handlebars with elbow support and contact heart rate grips
Extras
Water bottle holder, reading rack
Assembled Dimensions (L x W x H)
110 cm x 75 cm x 152 cm / 43” x 29.5” x 60”
Assembled Weight
72.5 kg / 160 lbs.
Max User Weight
182 kg / 400 lbs.
Power Requirements
Self-powered or 100–240 V — 50/60 Hz AC (may vary by region)
